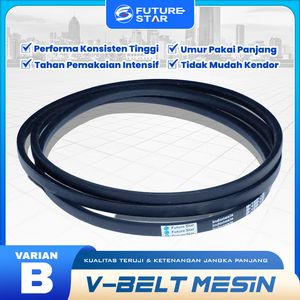

Type B V-belt

Product Introduction

The B-type V-belt is a common industrial drive belt, belonging to the standard V-belt series, made of high-quality rubber, polyester cords, and wear-resistant fabric. Its cross-section is larger than that of the A-type, allowing it to transmit higher power, widely used in industrial machinery, agricultural equipment, fans, water pumps, and power transmission systems.

The B-type V-belt features stable transmission, shock absorption, low operating noise, and easy maintenance, making it one of the most widely used drive components in industrial equipment.

Product Specifications
B-type V-belt Standard Sizes
Parameters    Size
Top Width (W)    17 mm
Height (H)    11 mm
Angle    40°
Common Length Range
B500 ～ B5000
Supports both imperial and metric specifications
Custom lengths available
Product Structure
1. Top Rubber Layer

Has wear-resistant, heat-resistant, and aging-resistant properties, protecting the internal structure.

2. Tensile Layer

Made of high-strength polyester rope or aramid rope to enhance tensile performance and stability.

3. Cushioning Rubber Layer

Enhances flexibility, reduces operational vibrations and impacts.

4. Bottom Rubber Layer

Improves friction performance and enhances transmission efficiency.

5. Cover Layer

Wear-resistant and anti-slip, increasing service life.

Product Features
High transmission efficiency
Strong load capacity
Wear-resistant and aging-resistant
Good anti-static performance
Stable operation
Low noise
Good cushioning and shock absorption effect
Easy installation and maintenance
Long service life
Product Advantages
High power transmission

Compared to Type A V-belts, Type B can withstand higher loads.

Adaptable to complex working conditions

Suitable for high temperature, dust, and continuous operation environments.

Good flexibility

Stable bending performance during operation, not easy to break.

Low maintenance cost

Easy to replace, short equipment downtime.

Application fields

Widely used in:

Industrial machinery
Air compressors
Fan equipment
Agricultural machinery
Conveying equipment
Woodworking machinery
Mining equipment
Power generation equipment
Pump systems
Textile machinery
Product classification
Standard Type B V-belt

Suitable for standard industrial equipment.

Narrow V-belt (SPB)

Higher load capacity and greater transmission efficiency.

Joined Type B V-belt

Multiple belts connected for improved stability.

Toothed Type B V-belt

Better heat dissipation, suitable for high-speed transmission with small pulleys.

Operating temperature range

Typically applicable temperature:

-20℃ to +80℃

Special high-temperature resistant models:

-30℃ to +120℃

Installation precautions
Keep pulleys parallel
Avoid excessive tension
Regularly check for wear
Avoid oil contamination
Belts in a set should be replaced uniformly
Product customization

Support:

Length customization
LOGO Printing
High-Temperature Customization
Anti-static customization
Assembly Processing
