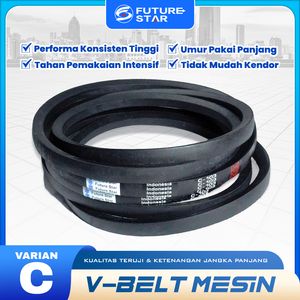

C-type V-belt

Product Introduction

The C-type V-belt is a heavy-duty industrial V-belt with a larger cross-section and higher load capacity, suitable for high-power, high-load machinery transmission. The product is made of high-quality rubber, high-strength polyester cord, and wear-resistant cover fabric, featuring stable transmission, wear resistance, impact resistance, and a long service life.

Compared to A-type and B-type V-belts, the C-type V-belt is more suitable for heavy industry and continuous high-load operating environments.

Product Specifications
C-type V-belt Standard Size
Parameters    Size
Top Width (W)    22 mm
Height (H)    14 mm
Angle    40°
Common Length Range
C500 ～ C6000
Supports both imperial and metric specifications
Custom lengths can be made according to equipment
Product Structure
1. Top Rubber Layer

Made of wear-resistant rubber material to protect the internal structure of the belt.

2. Tensile Layer

Uses high-strength polyester rope or aramid rope to enhance load capacity and tensile strength.

3. Cushioning Rubber Layer

Enhances flexibility and reduces operational vibrations and impacts.

4. Bottom Rubber Layer

Increases friction with the pulley for enhanced transmission efficiency.

5. Cover Layer

Features wear resistance, anti-slip properties, and high-temperature resistance.

Product Features
Strong load capacity
Suitable for high-power transmission
Wear-resistant and aging-resistant
Stable operation
Strong impact resistance
High transmission efficiency
Low noise
Long service life
Low maintenance cost
Product Advantages
High load operation capability

Suitable for large machinery and continuous heavy-load equipment.

Excellent wear resistance.

Remains stable in complex environments such as dust and high temperatures.

Stable transmission.

Reduces slippage and improves equipment operating efficiency.

High tensile strength.

Not easily broken, suitable for long periods of continuous work.

Application fields

Widely used in:

Mining machinery
Industrial fans.
Large air compressors.
Power generation equipment
Conveying machinery.
Stone machinery
Woodworking equipment.
Agricultural machinery
Crushing equipment
Metallurgical machinery
Product classification
Standard C-type V-belt

Suitable for standard industrial equipment.

Narrow V-belt (SPC)

Higher load capacity, suitable for efficient drive systems.

Joined V-belt

Multiple belts combined to enhance stability and synchronization.

Toothed C-type V-belt

Faster heat dissipation, suitable for high-speed operating equipment.

Operating temperature range

Standard model:

-20℃ to +80℃

High-temperature model:

-30℃ to +120℃

Installation and maintenance recommendations
Regularly check tension
Keep pulleys parallel
Avoid oil contamination
Regularly check for wear
It is recommended to replace multiple belts simultaneously
Customization available

Support:

Custom Length
LOGO Printing
High-Temperature Customization
Assembly Processing
Anti-Static Treatment
